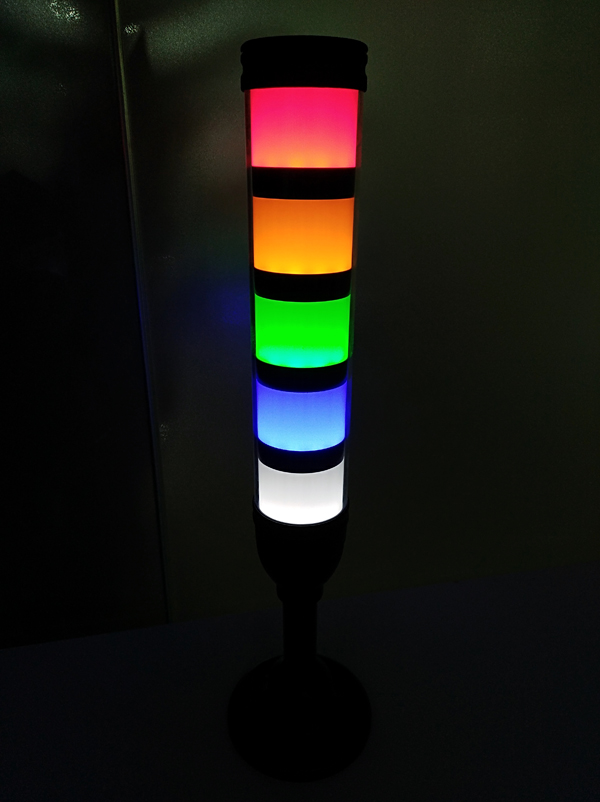

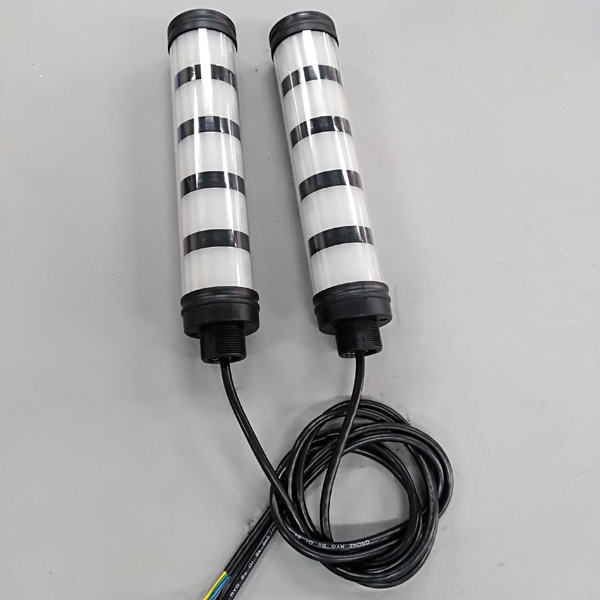

TL50-RYGBW series |
|
Stack |
Red, Amber, Green, Blue, White |
Input |
12V/24VDC/100-240VAC |
Current |
12VDC 80mA; 24VDC 40mA |
Buzzer |
15mA |
Color |
R/Y/G/B/W, each wire controls one color |
Performance |
Steady On or Flashing |
Electric protection |
Protected again reverse polarity |
Response time |
<10milli seconds |
Buzzer frequency |
2.7KHz+/-500Hz, 90db |
Working temperature (℃) |
-40℃~50℃ |
IP rating |
IP67 |
LED life span (H) |
100000 hours |
Dimension(mm) |
Ø50x236mm |
Installation accessory |
Foldable base/ fixed plate/ pole with plate |
Material |
Powerful SMD LED, high transmittance and reinforced ABS and polycarbonate housing, Surface very smooth and flat, high transmittance, unique designed driver, can recognize various performance and maximum five stacks |
Feature |
Compact and patented design, waterproof. Corrosion proof, oil proof. Installs directly on machine quickly and easily with prewired or quick-disconnect options no assembly required; Features a completely self-contained design no controller required; Display up to 7 colors in a single tower choice of 10 colors in standard brightness and 5 colors in high brightness tower lights; Allows multiple lights on to be simultaneously Eliminates false indication from environment, indicator appear grey when off
|
Approval |
CE, FCC |
