ML60 Series Heavy duty Industrial Light
Feature
Use the latest Energy saving led lightings technology, High purity & strong aluminum alloy body,tempered glass, can withstand toughest environment, water proof, oil, chemical resistant, maintenance free .
Bright, Light evenly and uniform
24VDC or 100-260VAC
Mounting angle adjustable
Quick Spec
Input: 24V DC or 100-260V AC
Electric protection: Over-current, over load protection. For DC input, polarity free
Working environment:-40℃ +50℃
Humidity: 90% at 50℃(non-condensing)
Material: High purity aluminum alloy and reinforced PC
Color tempertuare:4500K-5500K or 6000K-7000K

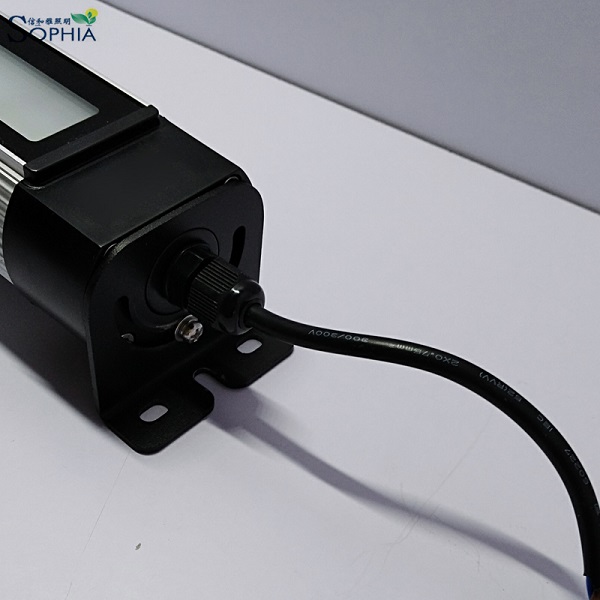

Wiring connection: 1 meter cable or Quick connector
Lighted Length: 300mm, 450mm, 600mm, 900mm, 1200mm
IP rating: IP67
Approval: CE, FCC
|
Model ML60-XXX |
24V DC |
230V AC |
||||
|
|
Current(A) |
Power(W) |
Lumen(LM) |
Current(A) |
Power(W) |
Lumen(LM) |
|
300mm |
0.45 |
10.8 |
1080 |
0.05 |
12 |
1200 |
|
450mm |
0.68 |
16.2 |
1620 |
0.08 |
18 |
1800 |
|
600mm |
0.9 |
21.6 |
2160 |
0.11 |
24 |
2400 |
|
900mm |
1.35 |
32.4 |
3240 |
0.16 |
36 |
3600 |
|
1200mm |
1.8 |
43.2 |
4320 |
0.22 |
48 |
4800 |
|

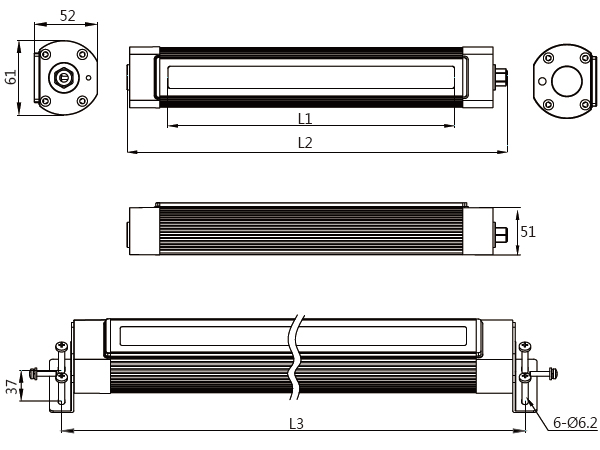

Model ML60-XXX |
Lighted Length L1(mm) |
Body length L2 (mm) |
Installation length L3 (mm) |
|
300mm |
289 |
393 |
385 |
|
450mm |
439 |
543 |
535 |
|
600mm |
589 |
693 |
685 |
|
900mm |
889 |
993 |
985 |
|
1200mm |
1189 |
1293 |
1285 |
|
