ML30
Description:

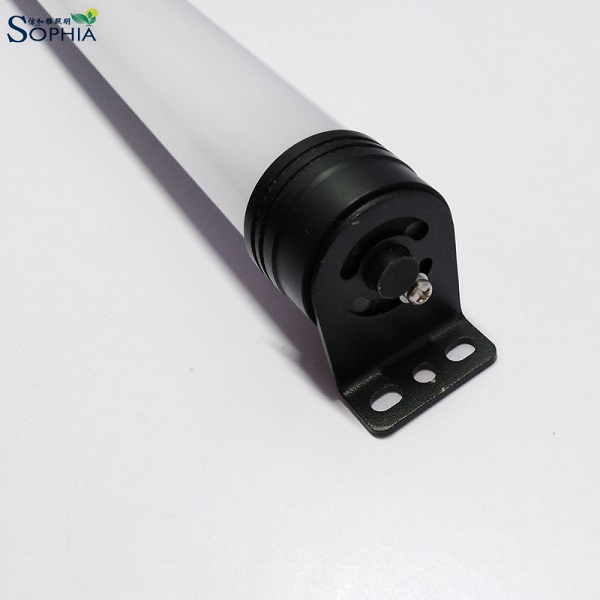

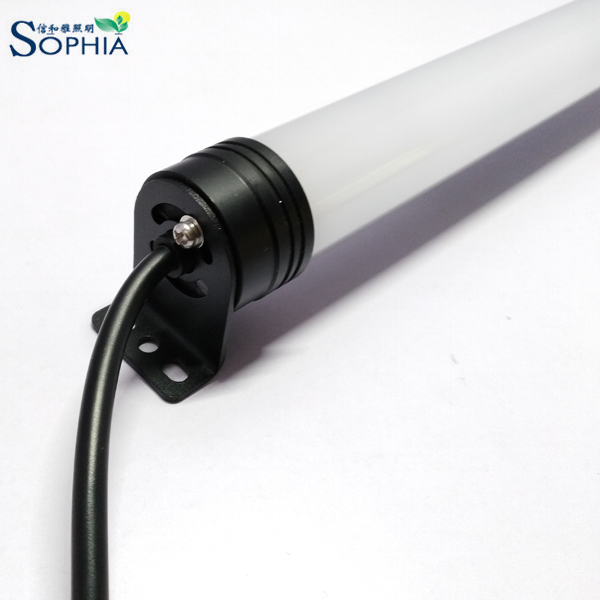

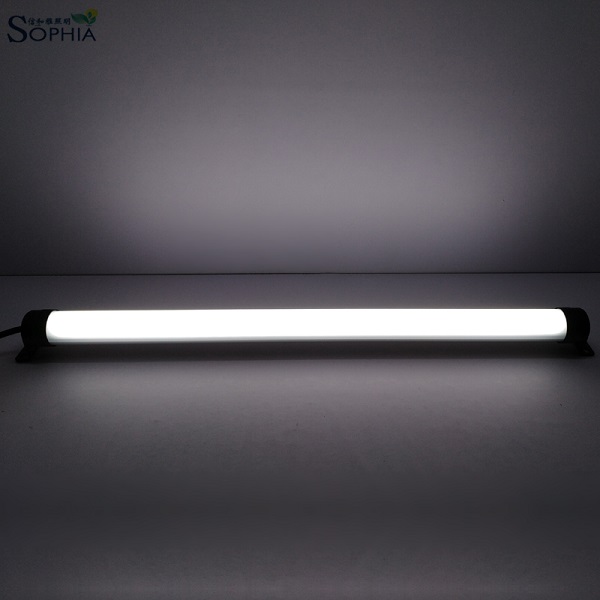

ML30  Series LED Light Bar

Feature

Use the latest Energy saving led lightings technology, with internal aluminum housing, Anit UV PC cover, water & oil resistant, suitable for various harsh environment,  maintenance free .

Bright, Light evenly and uniform

24VDC

Mounting angle adjustable

Quick Spec

Input: 12V or 24V DC

Electric protection: Over-current, over load protection, polarity free

Working environment:-40℃ +50℃

Humidity: 90% at 50℃(non-condensing)

Material: High purity aluminum alloy and reinforced PC

Color tempertuare:4500K-5500K or 6000K-7000K

Wiring connection: 1 meter cable or Quick connector

Lighted Length: 300mm, 450mm, 600mm, 900mm, 1200mm

IP rating: IP67

Approval: CE, FCC

Model

ML30-XXX

12V

Current(A)

24V Current(A)

Power(W)

Lumen(LM)

300mm

0.5

0.25

6

480

450mm

0.75

0.375

9

720

600mm

1

0.5

12

960

900mm

1.5

0.75

18

1440

1200mm

2

1

24

1920

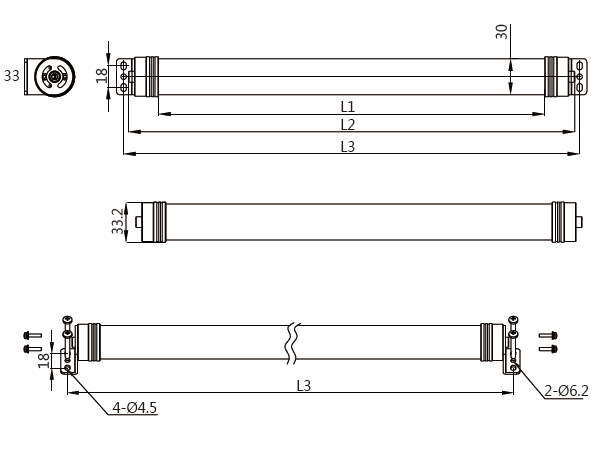

Model

ML30-XXX

Lighted Length L1(mm)

Body length L2

(mm)

Installation length L3

(mm)

300mm

300

348

364

450mm

450

498

514

600mm

600

648

664

900mm

900

948

964

1200mm

1200

1248

1264
