Item No.

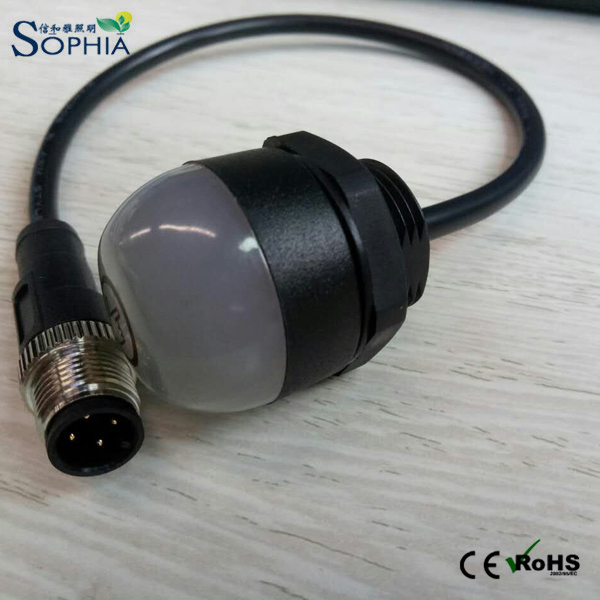

RL30T Indicator

Supply Voltage

24Vdc±10%

Supply Current

Red, Green, Blue, Yellow: <50mA@24Vdc

Output Rating:

a, Maximum Load

120mA, with PTC protection

b, On-State Saturation Voltage

c, Off-State Leakage Current

<10uA(30Vdc)

Indicators

Two colors of red, green, yellow, blue etc

Job inactivity

Job inactivity-red, job activity- green

Electronic Protection

Protected against over current

Output Response Time

25 milliseconds(max.) On and Off

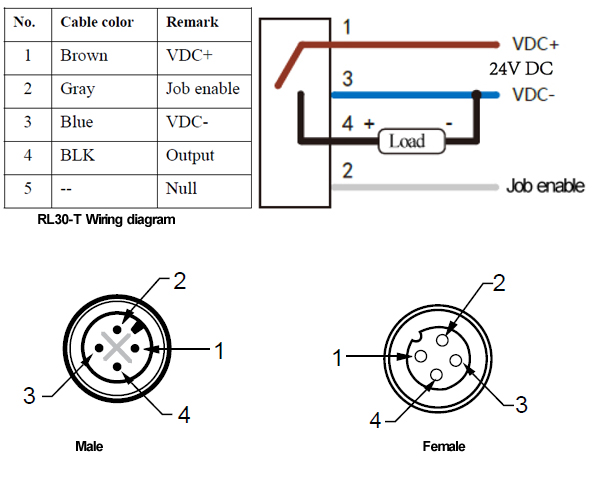

Connections

Integral 4-pin M12 QD wth 0.3m cable, or 1m integral cable

Working temperature (℃)

-40℃~50℃

Humidity

95% at50℃

IP rating

IP69K

Dimension

30mmx38mm(ODxH)

Mounting thread

M22x1.5mm

Material

ABS and Polycarbonate

Approval

CE    FCC

Function

F1: Job input keeps the “Job” light ON until touched. Touch activates output and overrides the “Job” light with “Touch” light

F2: Job input keeps the “Job” light ON. Touch with inactive job input activates output and turns “Touch” light on
