RL90 series |
|
Standard voltage |
12V dc(10% fluctuation), 24V dc(10% fluctuation) |
Maximum current(LED color) |
360mA@12V dc; 180mA @24V dc |
Buzzer |
No buzzer available |
Color options |

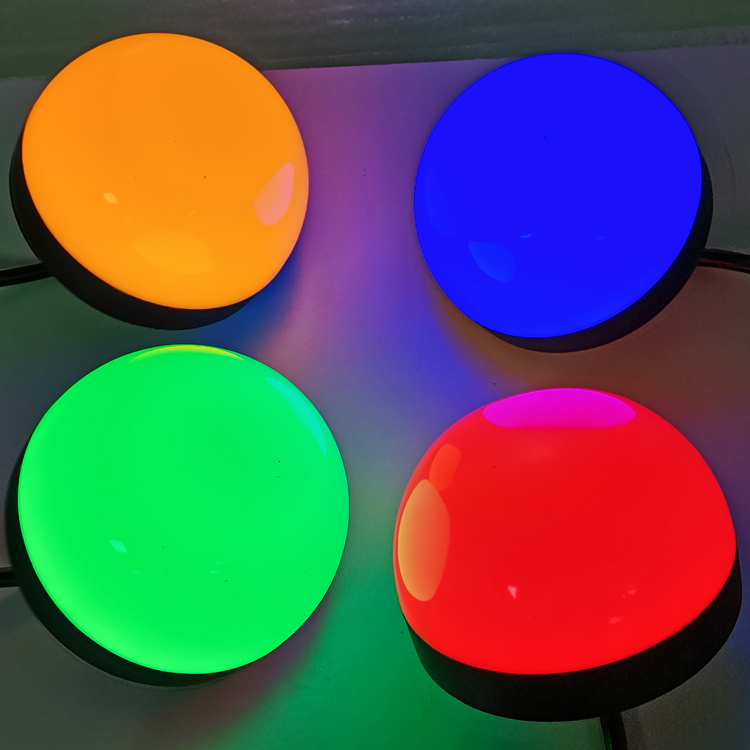

RGB, offer seven mixed colors |
Polarity |
No |
Response time(on/off) |
<10 ms |
Body color |
Black |
Lens color |
Milk color |

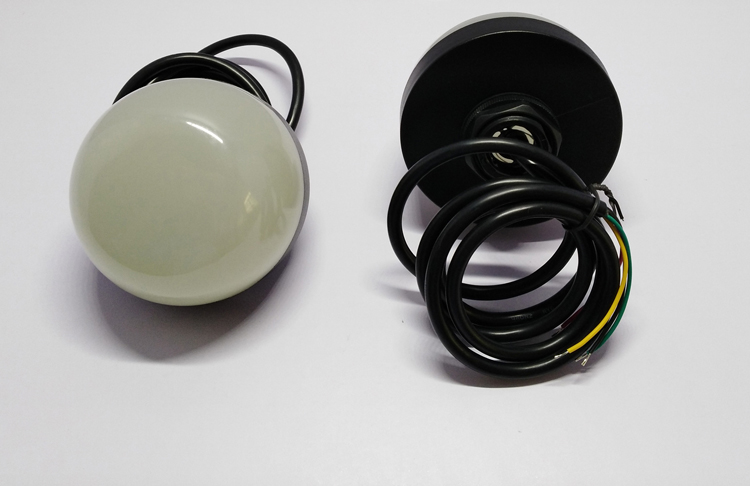

Connection |
1 meter cable or 30cm cable with M12 quick disconnet |
Working temperature (℃) |
-40℃~50℃ |
Max Op. Relative Humidity |
95% at50℃ |
IP rating |
IP69K |
Dimension |
90mmx70.6mm(ODxH) |

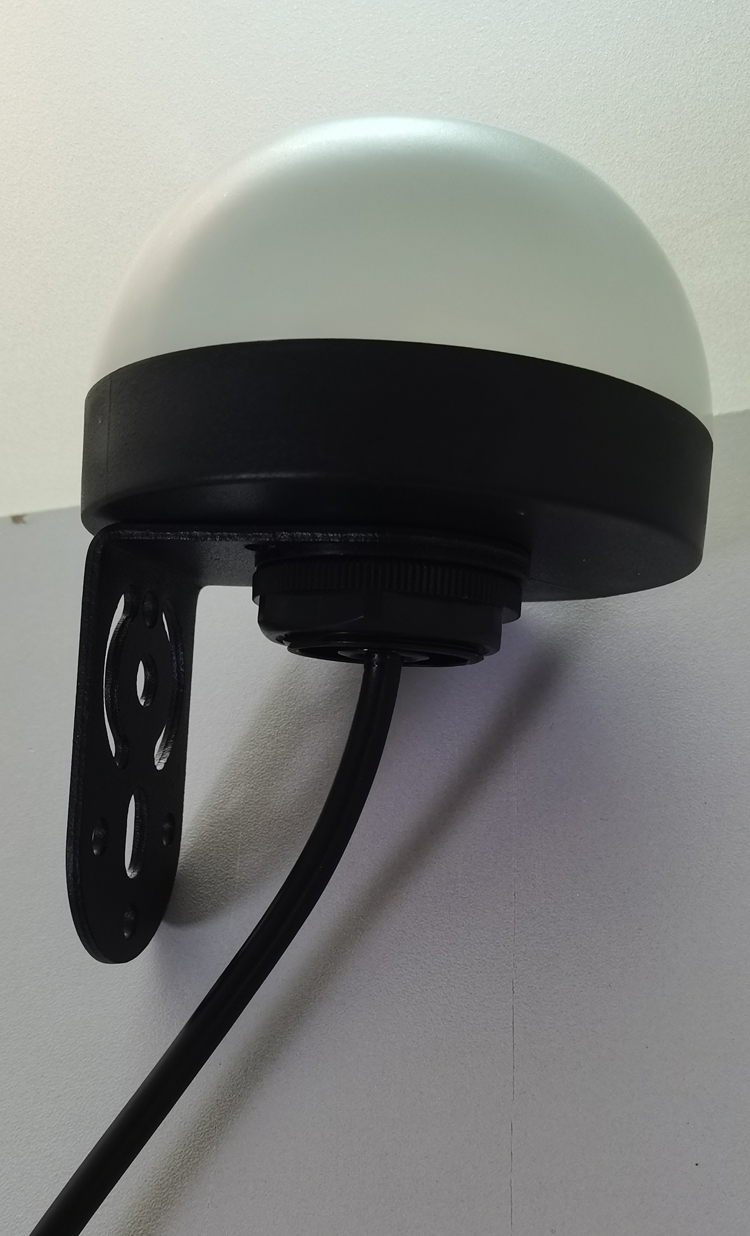

Mounting thread |
M30x1.5mm |
Material |
ABS and Polycarbonate |
Approval |
CE FCC |
Feature |
The smooth 90 mm diameter dome gives uniform illumination from all directions. These indicators are completely epoxy encapsulated, which protects the electronics from the harshest environments, making them nearly indestructible. The neutral color when in the off condition eliminates false indication from surrounding ambient light. Up to five colors in one device with many different color combinations Long-lasting, energy-efficient LEDs for years of operation with zero maintenance. Up to IP69K to handle high-pressure washdown environments. External threads allowing for a variety of mounting methods. |
