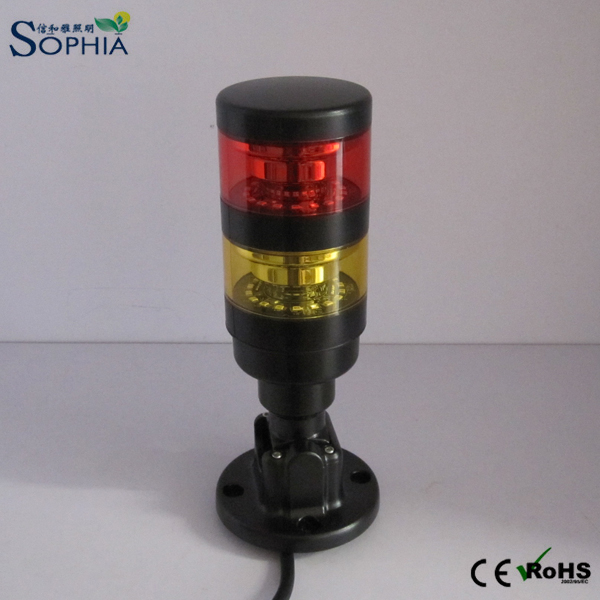

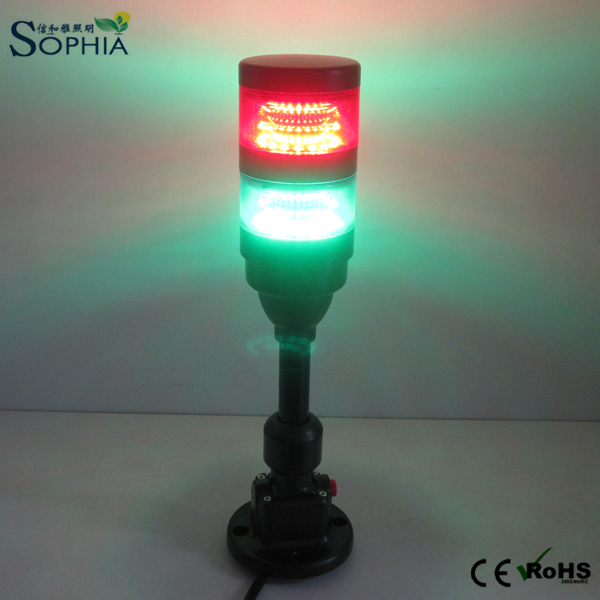

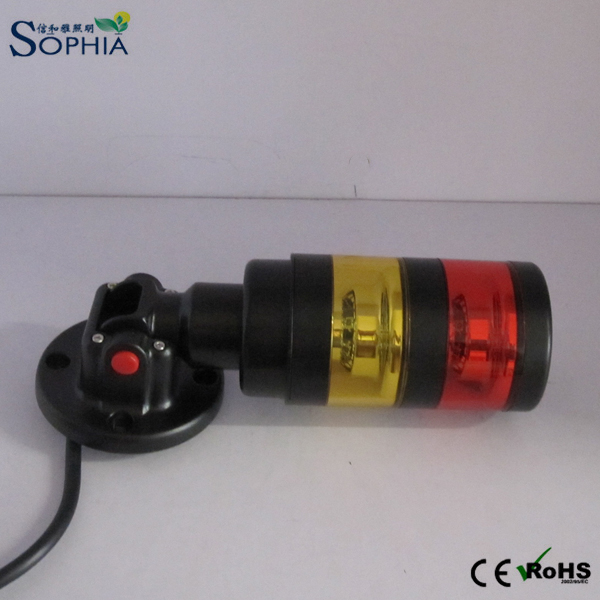

TL70-RY
Description:

Item No.

TL70-RY/RG

Stack

Two, Red, Green or Red Amber

Input

DC12V/24V

Current

12VDC 240mA; 24VDC 120mA

Buzzer

30mA

Color

Red/Orange/Yellow/Green/Blue/White, random combination

Performance

a Revolving; b flash; c constant color

Electric protection

Protected again reverse polarity

Response time

<10milli seconds

Buzzer frequency

2.5KHz+/-500Hz, 95db

Working temperature ()

-40~50(no buzzer);-20~50(with buzzer)

IP rating

IP67

LED life span (H)

100000 hours

Dimension(mm)

Ø70x H156mm/ 176mm(with buzzer)

Installation accessory

Foldable base/ fixed plate/ pole with plate

Material

Powerful SMD LED, high transmittance and reinforced ABS and polycarbonate housing, Surface very smooth and flat, high transmittance, unique designed driver, can recognize various performance and maximum five stacks

Feature

Compact and patented design. High visible, Corrosion proof, oil proof. Rugged and waterproof Housing, UV stabilized lighting segements, smooth surface and uniform brightness. Modular design, can change or adjust color randomly without additional tool. Excellent driver, can make maximum five stacks with various performance. Base with30mm mounting thread, very easy and convenient to install.

Approval

CE, FCC
