Item No. |
RL50-P series |
Input |
12V-30VDC |
Current |
12VDC<75mA; 30VDC <40mA |
Indication Colors |
Red/Green/Blue/Yellow/White ( 7 colors available) |
Performance |
For three colors: job inactivity-job activity-job finish; For two colors: a Inactivity-toggle between activity and inactivity; b Momentary versions remain activated as long as touch is present
|
Electric protection |
Protected again reverse polarity and transient voltage |
Response time |
<50milliseconds on and off |
Output rating |
Maximum load 150mA; on state voltage: <2V 10mA DC; <2.5V 150mA DC; off state leakage current:<10uA at 30VDC |
Working temperature (℃) |
-40℃~50℃ |
IP rating |
IP69K |
LED life span (H) |
100000 hours |
Dimension(mm) |
Ø50x H62mm |
Installation |
M30x1.5 thread, easy to install. Mounting kit(optional) |
Material |
Powerful SMD LED, high transmittance and reinforced ABS and polycarbonate housing, unique designed and patented driver, can get maximum seven independent colors. |

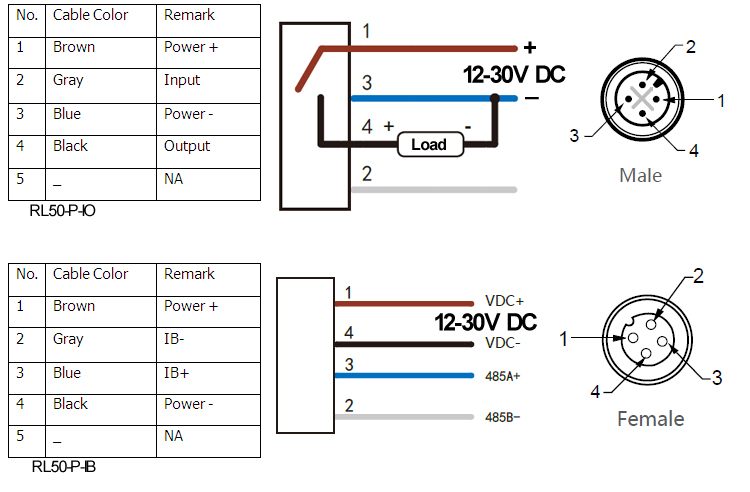

Wire connection |
Integrated 5-pins(Bi-polar) or 8-pins(three color) M12 quick connector with0.3mcable or1mcable without connector |
Feature |
Compact and patented design, waterproof. Corrosion proof, oil proof. Can be widely used in various industry workshops; Excellent immunity to false triggering by water spray, detergents, oils, and other foreign materials; Very easy to install; Three independent colors in one unit—Color 3 overrides Colors 1 and 2, Color 2 overrides Color 1 Eliminate hand, wrist, and arm stresses associated with repeated switch operation; Actuated with finger, hand or palm or with work gloves
|
Approval |
CE, FCC |
