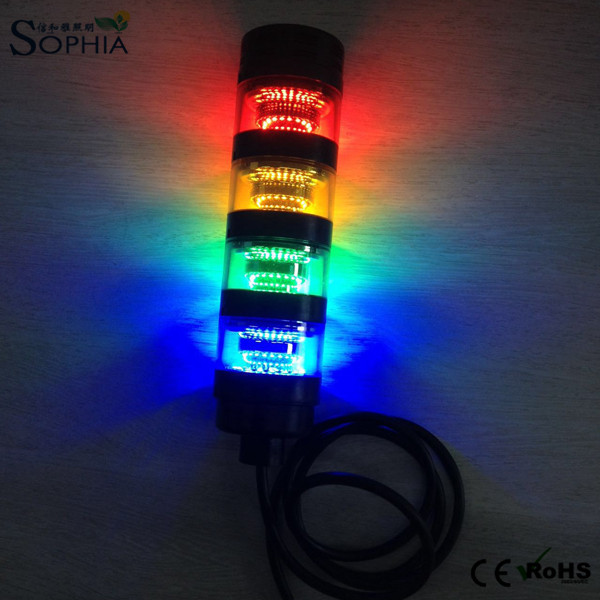

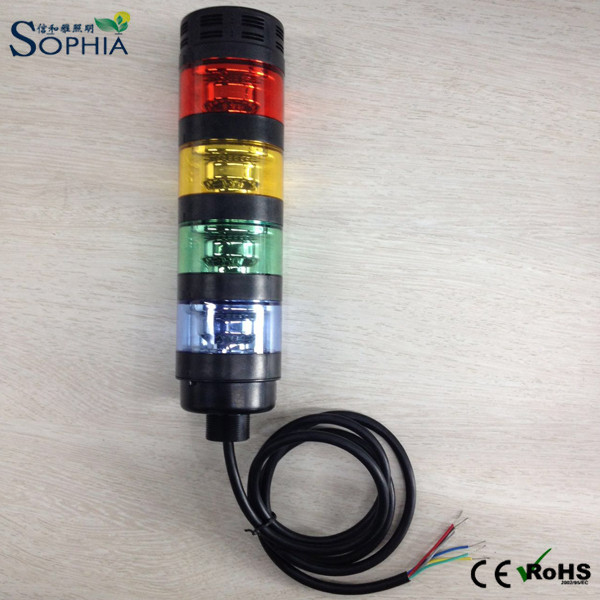

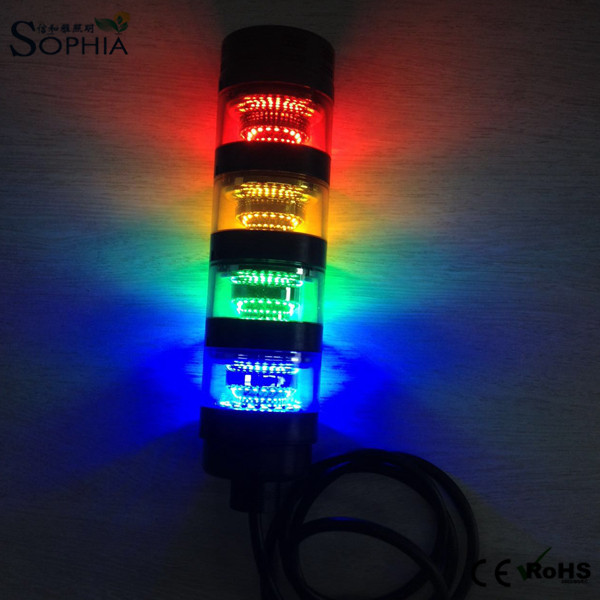

TL70-RYGB-Buzz
Description:

Item No.

TL70-RYGB-Buzz series

Stack

Four, Red, Amber, Green, Blue and buzz

Input

DC12V or DC24V

Current

12VDC 240mA; 24VDC 120mA

Buzzer

30mA

Color

Red/Orange/Yellow/Green/Blue/White, random combination

Performance

a Steady On, b Flashing

Electric protection

Protected again reverse polarity

Response time

<10milli seconds

Buzzer frequency

2.5KHz+/-500Hz, 95db

Working temperature ()

-20~50(with buzzer)

IP rating

IP53

LED life span (H)

100000 hours

Dimension(mm)

Ø70x H276mm(not include installation base)

Installation accessory

Foldable base/ fixed plate/ pole with plate

Material

Powerful SMD LED, high transmittance and reinforced ABS and polycarbonate housing, Surface very smooth and flat, high transmittance, unique designed driver, can recognize various performance and maximum five stacks

Feature

Compact and patented design, waterproof. Corrosion proof, oil proof. Housing and surface is different from normal one in market, very smooth and flat, increase the brightness. Excellent driver, can make maximum five stacks with various performance. Module design, easy to maintain. Base with30mmthread, very easy and convenient to install.

Approval

CE, FCC
